Ultra‑thin N‑type silicon wafers are quietly reshaping expectations across the solar industry. As manufacturers push for higher efficiencies, lower degradation rates, and reduced production costs, the spotlight has turned toward N‑type substrates engineered at thicknesses once considered impractical. These wafers combine improved electrical performance with material properties that translate into longer‑lasting and more reliable photovoltaic cells. The shift is driven not by a single breakthrough but by a combination of refined crystal‑growth methods, upgraded wafering techniques, and maturing cell architectures that take full advantage of N‑type material characteristics.

Over the past decade, P‑type monocrystalline wafers dominated mainstream production because the processes behind them were standardized and cost‑effective. However, boron‑doped P‑type silicon carries fundamental limitations, especially its susceptibility to light‑induced degradation and lower tolerance for high‑temperature processing steps. The interest in N‑type wafers arises from the absence of these issues. Phosphorus‑doped N‑type silicon resists common degradation pathways, supports higher minority‑carrier lifetimes, and generally allows more advanced passivation schemes. When made ultra‑thin, these advantages combine with materials savings and improved light‑management strategies, creating a compelling pathway toward next‑generation solar modules.

Ultra‑thin wafers typically fall within a thickness range of 90 to 140 micrometers, though leading research lines demonstrate stable performance at even lower values. Reducing wafer thickness lowers silicon consumption per watt, which has always been a key cost driver in photovoltaic manufacturing. The challenge is to maintain mechanical strength while preventing excessive breakage during cell processing. Recent improvements in wire‑sawing precision, ingot shaping, and kerfless wafering techniques now allow industry players to reliably produce wafers thinner than before while retaining structural integrity. These developments make ultra‑thin N‑type substrates more practical for high‑volume manufacturing.

One reason N‑type material pairs well with thin‑wafer strategies is its superior tolerance to impurities. As wafers become thinner, even small variations in material quality can influence overall device behavior. N‑type silicon tends to maintain long diffusion lengths and stable carrier lifetimes, giving cell designers more freedom to experiment with optical and structural optimizations. This is especially useful for architectures such as TOPCon (Tunnel Oxide Passivated Contact), heterojunction cells, and interdigitated back‑contact designs, all of which benefit directly from the electrical characteristics of N‑type substrates.

TOPCon technology, for example, relies on ultra‑high‑quality passivation and precise control of carrier recombination at the cell surfaces. When combined with thin wafers, light absorption and internal reflection can be enhanced through optimized texturing and rear‑side structures. Manufacturers are reporting small yet consistent efficiency gains—fractions of a percent that translate into significant energy yield improvements at the module level. Heterojunction cells, which require gentle thermal budgets and benefit from excellent surface passivation, are also well suited for thin‑wafer approaches. As a result, many companies pursuing heterojunction lines are already incorporating reduced‑thickness N‑type wafers into their roadmaps.

Another important factor is durability. Solar modules are expected to last 25 to 35 years, and degradation mechanisms remain one of the biggest concerns for downstream customers. N‑type silicon inherently resists common degradation modes such as light‑induced degradation and light‑ and elevated‑temperature‑induced degradation. These characteristics persist even as wafers become thinner. Module makers are able to achieve higher reliability scores, which is increasingly important for utility‑scale projects that rely on long‑term energy forecasts. Pairing thin N‑type substrates with high‑quality encapsulants and advanced cell interconnection techniques further reduces the mechanical stress on wafers, helping ensure long‑term stability.

Manufacturing efficiency also benefits from thinner wafers. Technological refinements across slicing, polishing, and surface texturing processes have shortened cycle times and improved yield. Because thinner wafers require less material, ingots can produce a larger number of wafers, lowering the overall cost per unit area. The transition to diamond‑wire sawing has accelerated this trend by minimizing kerf loss and increasing throughput. Some production lines are integrating kerfless wafering, which eliminates the sawing step entirely and opens the door to even more aggressive thickness reductions.

Light management is another dimension where ultra‑thin N‑type wafers excel. Thinner substrates change the optical path inside the cell, allowing more efficient use of photons when combined with improved surface textures, rear reflectors, and anti‑reflective coatings. Backside reflectors become highly influential because photons that pass through the thin wafer can be recaptured more effectively. This phenomenon contributes to higher short‑circuit currents and overall cell efficiencies. Research groups report that thin wafers, when paired with advanced passivation layers, can reach or exceed performance levels of thicker wafers while adopting more efficient use of silicon.

There is also rising interest in pairing ultra‑thin N‑type substrates with novel metallization strategies. As cell architectures evolve, metal contact patterns become finer and more precise. Thinner wafers make it easier to control diffusion depths and junction formation because there is less material to treat, reducing thermal load during firing or annealing steps. This is especially beneficial for heterojunction cells, which rely on low‑temperature metallization processes. The alignment between thin‑wafer behaviors and evolving metallization practices reinforces the industry's shift toward N‑type platforms.

Environmental considerations also play a role. Reducing silicon consumption lowers the energy input needed for ingot growth and wafering. Ultra‑thin wafers cut material usage significantly, decreasing the embodied energy of each solar module. Since N‑type cells often operate at higher efficiencies, the energy payback time tends to shorten as well. As sustainability metrics gain attention from policymakers and project developers, these improvements create an additional incentive for manufacturers adopting thinner wafers.

Despite these advantages, several challenges still require attention. Mechanical handling remains a sensitive step because ultra‑thin wafers can crack under even moderate stress. Automation systems continue to be refined to minimize contact, using advanced robotics and improved vacuum pickup technologies. Another concern is compatibility with existing production lines; retrofitting P‑type lines to support thin N‑type wafers demands capital investments and operator training. While many leading manufacturers are making the switch, smaller firms may face cost barriers before fully embracing these substrates.

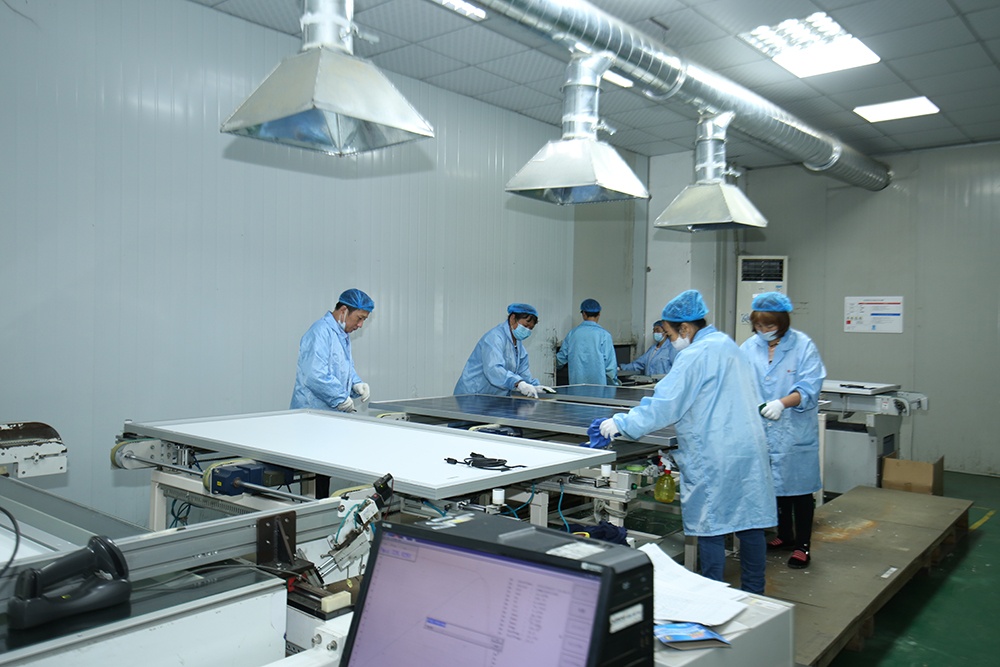

Packaging and module assembly also require adaptation. Ribbon soldering can place stress on thin cells, making alternative interconnection methods more attractive. Techniques such as multi‑busbar wiring, conductive adhesives, and flexible foil interconnections distribute stress more evenly and reduce the likelihood of microcracks. These methods are becoming more widespread as module designs move toward high‑density cell layouts and improved mechanical resilience.

Nonetheless, the broader industry momentum is unmistakable. As efficiency records continue to rise and cost trajectories edge downward, ultra‑thin N‑type wafers are gaining recognition as a cornerstone of future solar manufacturing. Their compatibility with advanced cell architectures, combined with maturing production technologies, positions them as one of the most promising pathways to higher‑performance solar modules with lower material intensity. This momentum is amplified by the steady growth of utility‑scale installations, rooftop arrays, and commercial deployments seeking more durable and efficient module options.

Beyond electricity generation, research programs are exploring additional applications. Thin N‑type substrates may support tandem structures that pair silicon with perovskite layers or other absorbers. Their reduced thickness could make it easier to manage optical coupling between layers and control thermal behavior. Although tandem technologies are still progressing through technical hurdles, many researchers consider thin N‑type wafers a strong candidate for the bottom cell of future high‑efficiency tandem modules.

Manufacturers that adopt these wafers early often gain advantages in efficiency ratings, product reliability, and supply‑chain flexibility. With global demand for high‑performance modules climbing steadily, the ability to deliver consistent, durable products with strong long‑term yield profiles becomes increasingly valuable. Ultra‑thin N‑type substrates align well with these expectations, providing a platform that can accommodate future innovations without requiring radical overhauls of core manufacturing principles.

As production techniques mature, the threshold for widespread deployment continues to lower. Improved ingot purity, more accurate doping control, refined slicing, and advanced process monitoring systems are making ultra‑thin wafers more accessible for high‑volume lines. Simultaneously, balance‑of‑system providers, project developers, and installers are recognizing the reliability and long‑term energy benefits, which further encourages adoption.

Ultra‑thin N‑type silicon wafers represent a clear step forward for photovoltaic manufacturing. Their material advantages, compatibility with advanced architectures, and contributions to long‑term energy yield place them at the center of ongoing improvements across the sector. As manufacturers refine their processes and customers seek higher‑performance solutions with consistent durability, these wafers are emerging as one of the technologies most capable of shaping the next stage of solar advancement.
