P-Type PV Module

/144 Cells 550W 560W 565W Half Cell PERC Commercial
144 Cells 550W 560W 565W Half Cell PERC Commercial
144 Cells 550W 560W 565W Half Cell PERC Commercial
144 Cells 550W 560W 565W Half Cell PERC Commercial

144 Cells 550W 560W 565W Half Cell PERC Commercial

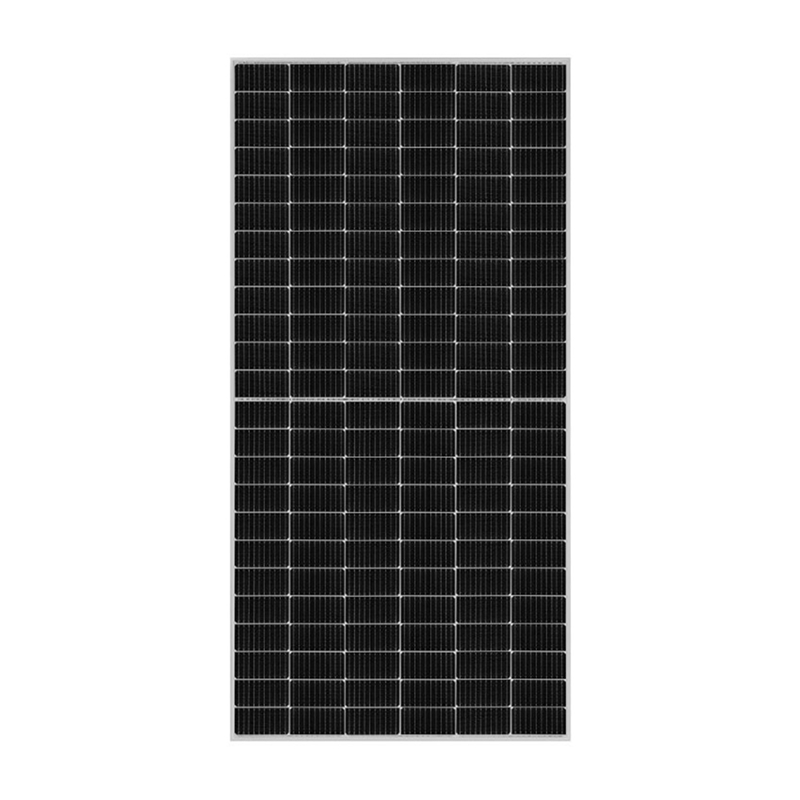

144 Cells 550W 560W 565W Half Cell PERC Solar Panel For Commercial

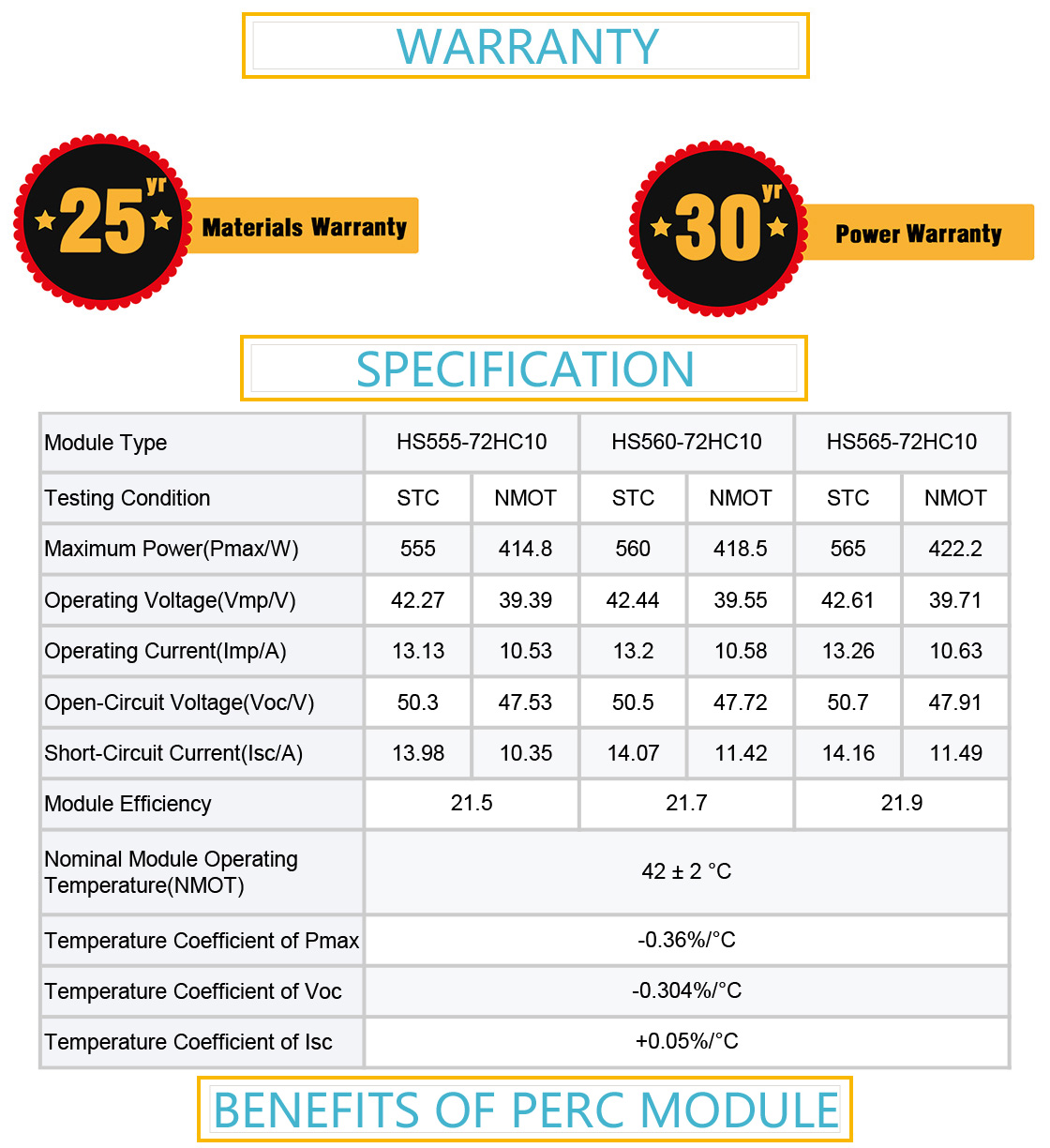

  • Model No. :

    HS565-72HC10
  • Nominal Power (Wp)

    565W
  • Max. System Voltage (V) :

    1500Vdc
  • Weight (kg) :

    27.8kg
  • Dimension (mm) :

    2278×1134×35mm
  • Number of cells :

    72 (6X12)
  • Cells type :

    182mm Half Cell PERC
  • Module Color :

    Silver White
  • Module Efficiency (%) :

    21.9%

Half-Cell PERC (Passivated Emitter and Rear Cell) solar panels have become a revolutionary answer to business energy demands in the rapidly changing renewable energy landscape of today. These panels outperform conventional solar panels in terms of performance, durability, and energy output by fusing cutting-edge technology with high efficiency.



Half-Cell PERC panels, which are made especially for large-scale installations, are perfect for companies looking to save energy expenses, lessen their carbon footprint, and meet long-term sustainability objectives. These panels are a great option for business rooftops, solar farms, and industrial setups because of their creative half-cell design and PERC technology, which maximise energy production even in harsh climatic circumstances.



Businesses may take advantage of state-of-the-art solar technology and help create a cleaner, greener future by investing in Half-Cell PERC solar panels. These panels provide the efficiency and dependability required to thrive in today's energy-conscious environment, regardless of your objectives—powering operations, lowering energy costs, or reaching corporate sustainability goals.

PERC Technology Improves Solar Panel Efficiency

By increasing the solar panels' capacity to absorb and use sunlight, PERC (Passivated Emitter and Rear Cell) technology raises their efficiency. A unique design that boosts light absorption and decreases energy losses makes this possible. The following explains PERC technology's operation and the reasons it boosts productivity:


1. The Reflective Layer Is Added

Each solar cell in PERC panels has an extra passivation layer on the rear. Sunlight that enters the cell is reflected back into it by this layer, which gives the cell another opportunity to absorb the light and produce electricity. By drastically lowering the quantity of sunlight wasted, this reflective design raises the panel's overall energy production.


2. Decreased Recombination of Electrons

Energy losses occur in conventional solar cells because some of the electrons produced by sunlight recombine before they can help produce electricity. In PERC cells, the passivation layer reduces this electron recombination, enabling more electrons to move freely and produce energy. This raises the cell's electrical efficiency.


3. Improved Performance at High Temperatures and Low Light

Solar panels can function better in low-light situations, such early mornings, late evenings, or overcast days, thanks to PERC technology. Furthermore, PERC cells can withstand higher temperatures more effectively than conventional cells, which may experience efficiency losses as temperatures rise. Because of this, PERC panels are perfect for areas with hot climates or unpredictable weather.


4. Improved Longer Wavelength Absorption

Standard solar cells frequently struggle to efficiently absorb longer wavelengths of sunlight, such as infrared light, but PERC technology enhances the cell's capacity to do so. Efficiency is further increased by the increased amount of energy that may be caught due to this broader absorption spectrum.


Principal Advantages of PERC Technology


Greater Efficiency: PERC panels have the potential to be 1% to 2% more efficient than traditional solar panels. This difference may not seem like much, but it has a big impact on the panel's lifetime energy output.


Increased Energy Yield: PERC panels produce more electricity per square metre by absorbing more sunlight and minimising losses, which makes them perfect for installations with limited space.


Cost-Effectiveness: Over time, PERC panels' increased energy output results in superior returns on investment, despite their slightly higher initial cost.


Solar panels using PERC technology are a very dependable and efficient option for commercial, industrial, and residential settings since they can generate more electricity from the same quantity of sunlight. A significant step towards increasing the sustainability and accessibility of solar energy for a broad spectrum of customers is this innovation.

Popular tags : MonofacialBifacial730W
